Andrews' Pitchfork Properties Dialog Box

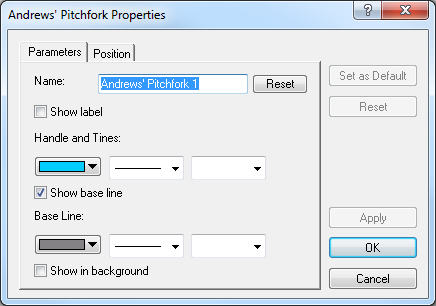

Name: displays the current name of the Andrews' pitchfork; the name is shown in the Andrews' pitchfork label.

Show label: if the check box is selected, the Andrews' pitchfork label is currently shown; otherwise, the label is hidden.

Handle and Tines: displays the current color, style and width of the handle and tine lines.

Show base line: if the check box is selected, the base line is currently shown; otherwise, the base line is hidden.

Base Line: displays the current color, style and width of the base line.

Show in background: if the check box is selected, the Andrews' pitchfork is shown in the background behind the prices; otherwise, the Andrews' pitchfork is shown in front of the prices.

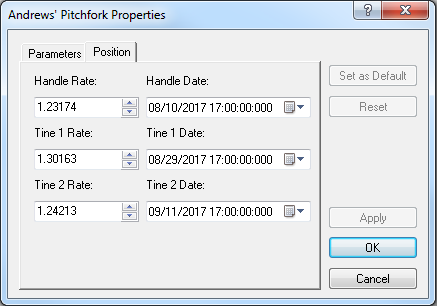

Handle Rate: displays the price level at which the handle line currently starts.

Handle Date: displays the date and time of the beginning of the period where the handle line currently starts.

Tine 1 Rate: displays the price level at which the first tine line (that is the tine line that is drawn through the second point) currently starts.

Tine 1 Date: displays the date and time of the beginning of the period where the first tine line starts.

Tine 2 Rate: displays the price level at which the second tine line (that is the tine line that is drawn through the third point) currently starts.

Tine 2 Date: displays the date and time of the beginning of the period where the second tine line currently starts.
